(Malaysia Distributor) BoxLight ANX325ST Short Throw Projector

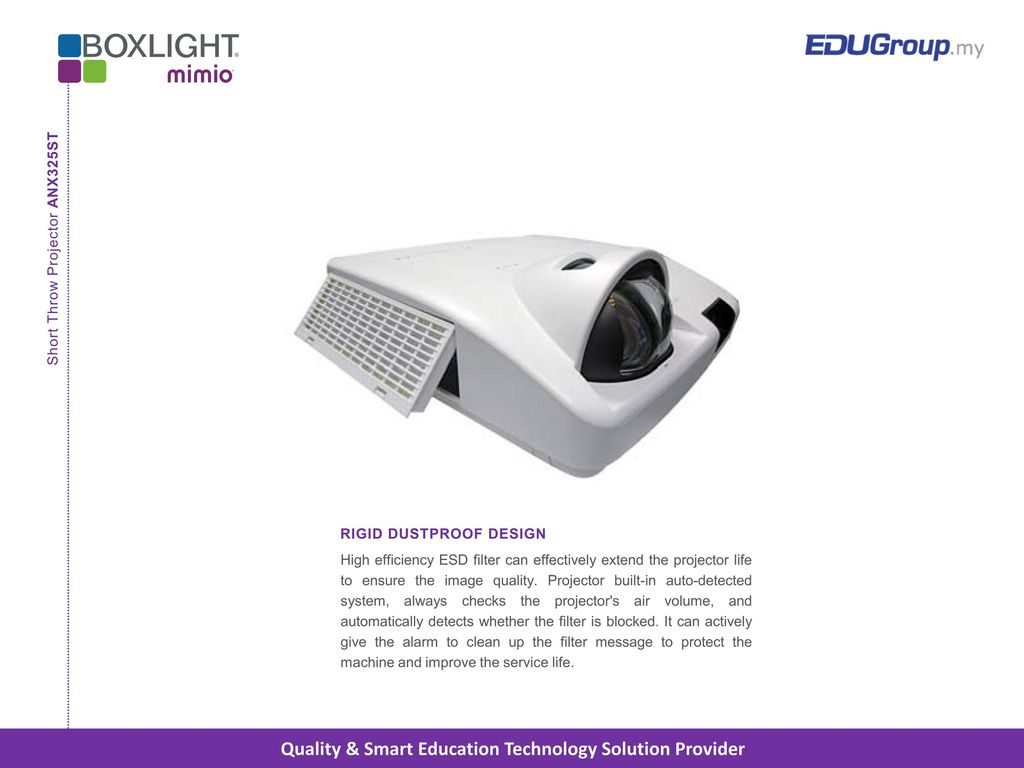

BoxLight ANX325ST Short Throw Projector
Shorten the projection distance to avoid light to the eyes directly to protect the teacher in front of the classroom.
2-HDMI and corner keystone make it easier for users and installers.
· 3LCD Color Balance
· Latest IRIS technology
· Powerful Correction Function
· Short Throw Projector (0.46:1)
· Up to 10,000 hours (ECO) Lamp Life Time
· Available display via USB or RJ45 cable
· 5 Years Hardware Warranty
EXCELLENT IMAGE EXPRESSION
Brightness 3200 ANSI Lumen
While using the projector indoor with lights on, true brightness projector still producing vivid color screen with all the essential features displayed in classrooms and meeting rooms.
3LCD Balance Color Performance
AN-series come with 3LCD technology, output vivid color and exquisite picture quality with different brightness. It shows clear, bright and natural images during your business presentation, provide prominent experience to clients.
The latest IRIS increase the Contrast
AN-series using latest dynamic IRIS contrast enhancement technology, greatly enhance the contrast of picture. Compared to traditional LCD projectors, it can provide the highest 3,000:1 / 15,000:1 contrast ratio, the perfect purest black color, and the clear picture, structured and subtle image to bring superior visual impact.
10,000 HOURS LAMP LIFE TIME
Up to 10,000 hours life time (ECO mode), it can tremendously reduce the supplies and save the cost. Under the normal condition of school usage, it can exceed 5 years without replacing the lamp.
CONTRAST THE LATEST IRIS INCREASE THE CONTRAST
Using the latest dynamic IRIS contrast enhancement technology, greatly enhance the contrast of picture. Compared to traditional LCD projectors it can provide the highest 15,000:1 contrast ratio, the perfect purest black in the presentation, and the clear picture, structured and subtle image to bring superior visual impact.
MULTIPLE INTERFACE CONNECTION
It provides not only the mainstream interface ( 2x VGA, 2x HDMI ), LAN and USB-B support all kind of signal display. USB-A 2.0 Port can support video and picture playback direct from USB flash drive
ADVANCED NETWORK PROJECTION
Allow up to 4 multi-screen projection via wired LAN or wireless LAN. 4 Tablet / Computer / Mobile can be projected on screen at the same time. Multi-screen projection can be archieved via LAN Network cable or optional wireless USB Dongle.
WIRELESS PROJECTION (OPTIONAL)
Using optional WiFi receiver, you can use the wireless projection function in Windows OS. Without HDMI cable, VGA cable or RJ45 cable. You can more easy to projection the data that you need anywhere.
SHORT THROW PROJECTOR
3,200 ANSI Lumen
15,000 : 1 (with IRIS & ECO Mode)
XGA (1024 x 768)
Philips : 218W
ECO : MAX 34.9dB
Normal : 38.9dB
5,000 Hours (Normal)
10,000 Hours (ECO)
4:3 (Standard) / 16:9 (Compatible)
F = 1.8
f = 6.08mm
H-sync Frequency 15~100KHz / V-sync Frequency 48~85Hz
Computer Signal Input
PC, VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, Mac
PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i
ECO Standby Mode
V : ±30°(manual)
26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi.
2 x VGA
2 x HDMI (One is Compatible with MHL)
1 x Video
2 x RCA
1 x S-Video (share with VGA in 1)
1 x YCbCr/Component (share with VGA in 1)
1 x Audio in (Left / Right)
1 x Audio in (Mini Jack 3.5mm)
1 x USB-A 2.0
*Support Memory viewer & WiFi Dongle (Optional Accessory)
1 x USB-B (Display)
1 x RJ45 (Display)
1 x VGA (share with VGA in 2)
1 x RS232
AC 100–240V @ 50/60 Hz
Max Dimensions (DEPTH x WIDTH x HEIGHT)
341mm x 347mm x 142mm
1 x Power cord
1 x VGA cable
1 x Remote control
1 x Service Card
1 x Quick Start Guide (for Projector)
MIMIOFRAME PROJECTION DISTANCE
78" - B78X
